Solis S-Series Hybrid Wechselrichter
Verkabelung

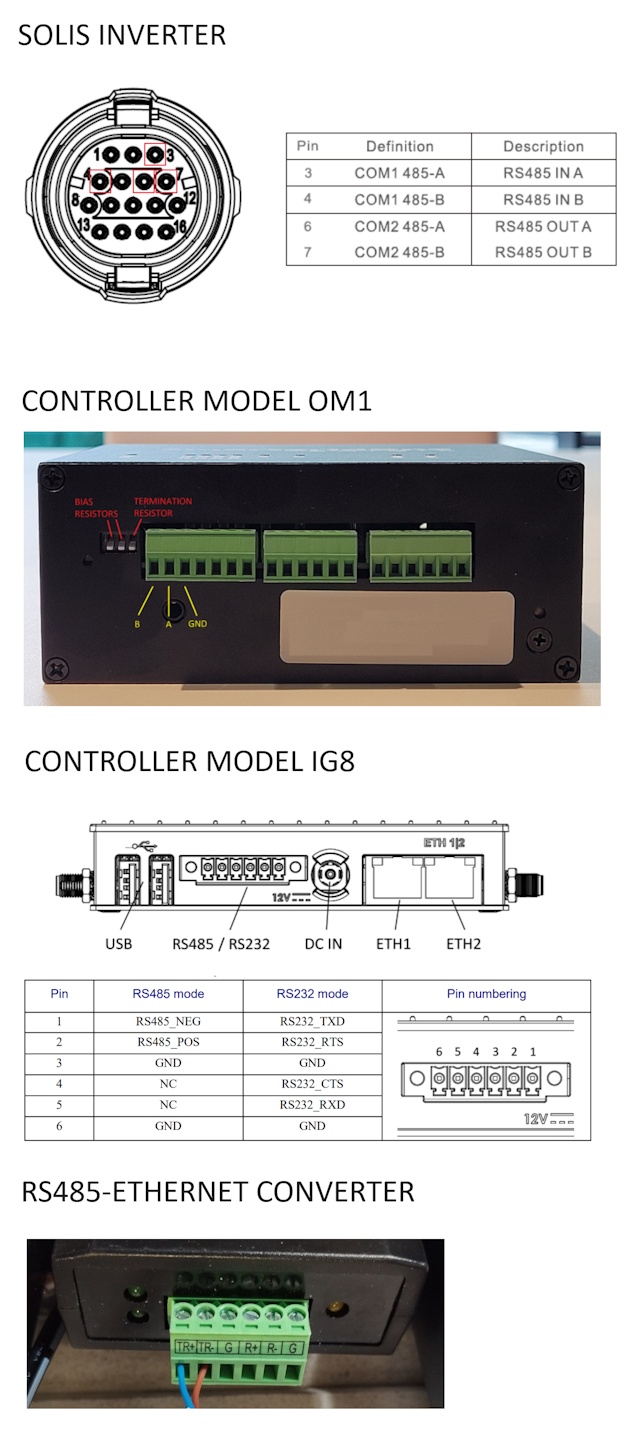

Die RS485-Verbindung erfolgt über den 16-poligen COM-Anschluss an der Unterseite des Wechselrichters.
Info
RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | a-TroniX Controller model OM1 | a-TroniX Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| RS485 IN A | RS485 A | RS485_POS | RS485 A | TX+ |
| RS485 IN B | RS485 B | RS485_NEG | RS485 B | TX- |
| N/A | RS GND | GND | Not available | G |
Konfiguration
RS485
Warnung
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the a-TroniX Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The a-TroniX Controller will scan on those first.
Standardmäßig ist der Wechselrichter auf Adresse 1 eingestellt. Dies kann über das Display des Wechselrichters geändert werden. Die Vorgehensweise finden Sie im Kapitel 7.3.2 der Bedienungsanleitung.
