Device Type	Variants	Modbus TCP (Ethernet)	RS485	Curtailment
Einphasige LV Hybrid-Wechselrichter (SG0XLP1-EU)	SUN-3/3.6/5/6/7/7.6/8/10/12K	❌	✅	❌
Dreiphasige LV Hybrid-Wechselrichter (SG0XLP3-EU)	SUN-3/4/5/6/8/10/12/14/15/16/18/20K
Dreiphasige HV Hybrid-Wechselrichter (SG0XHP3-EU)	SUN-5/6/8/10/12/15/20/25/29.9/30/35/40/50/60/70/75/80K
Einphasige String-Wechselrichter (G0XP1-EU)	SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4/4.2/4.6/5/5.2/6/6.2/7/7.5/8/9/10/10.5K
Dreiphasige String-Wechselrichter (G0XP3-EU)	SUN-3/4/5/6/7/8/9/10/12/15/18/20/22/23/25/30/35/36/40/45/50/60/70/75/80/90/100/120/125/130/135/136K

DET Power PV-, Hybrid- und Batterie-Wechselrichter

Previous Page

Diehl-Ako

Next Page

On this page

Unterstützte Geräte Verkabelung RS485 Konfiguration

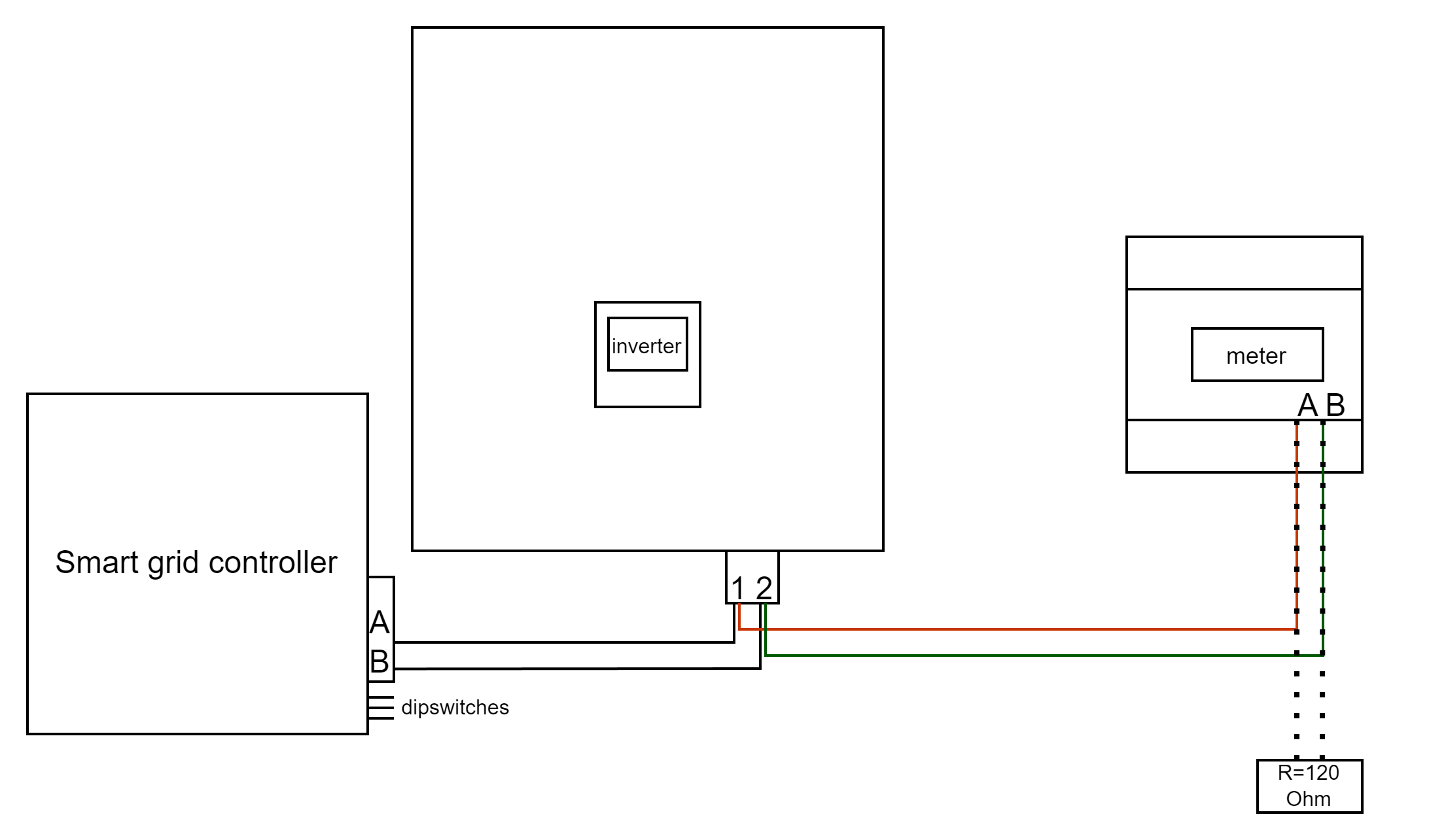

RS485 Wiring

For correct RS485 wiring: Follow the guidelines for RS485 wiring.
If the wiring shown in the table below is incorrect, please let us know.
There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.

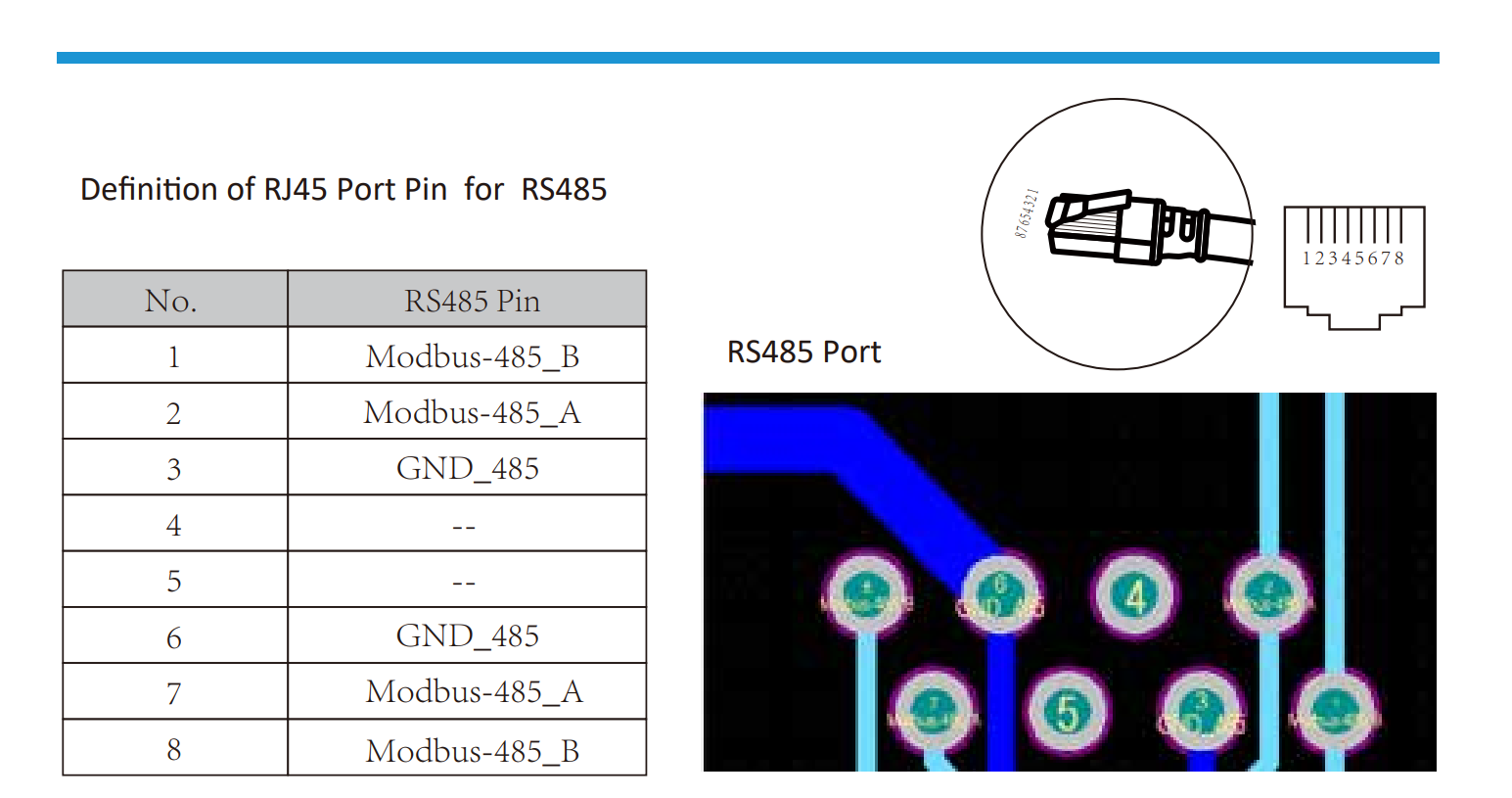

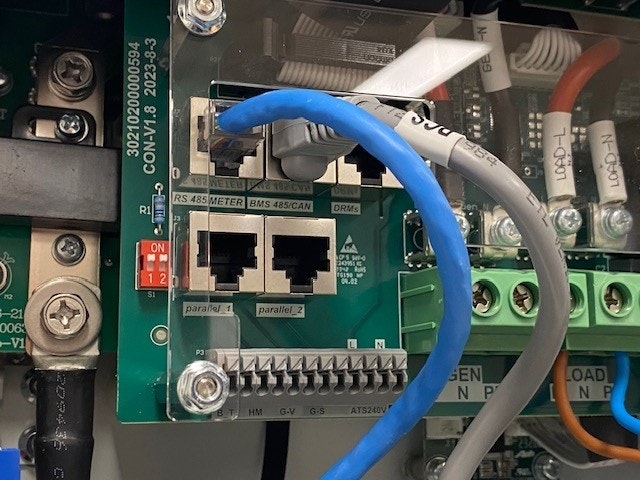

Device	a-TroniX Controller model OM1	a-TroniX Controller model IG8	RS485-USB converter	RS485-Ethernet converter
Pin 1 / Modbus-485_B	RS485 A	RS485_POS	RS485 A	TX+
Pin 2 / Modbus-485_A	RS485 B	RS485_NEG	RS485 B	TX-
Pin 3 / GND_485	RS GND	GND	Not available	G
