KSTAR C&I Hybrid-Wechselrichter
Unterstützte Geräte
| Device Type | Variants | Modbus TCP (Ethernet) | RS485 | Curtailment | Minimum device firmware version |
|---|---|---|---|---|---|
| BluePulse Hybrid Inverter | KAC50DP-BC100DE | ✅ | ✅ | ✅ | V000B060D000 |

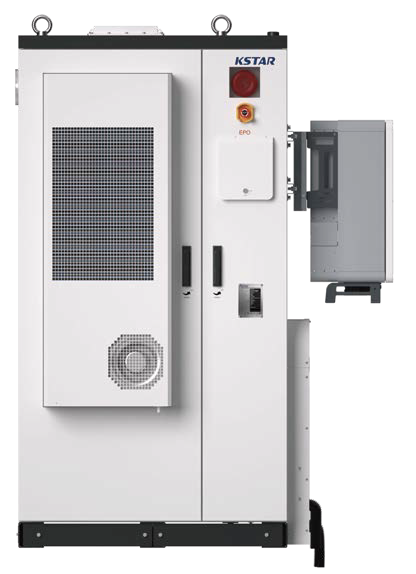

| KAC50DP-BC107DE / KAC50DP-BC107DE2 | |||||

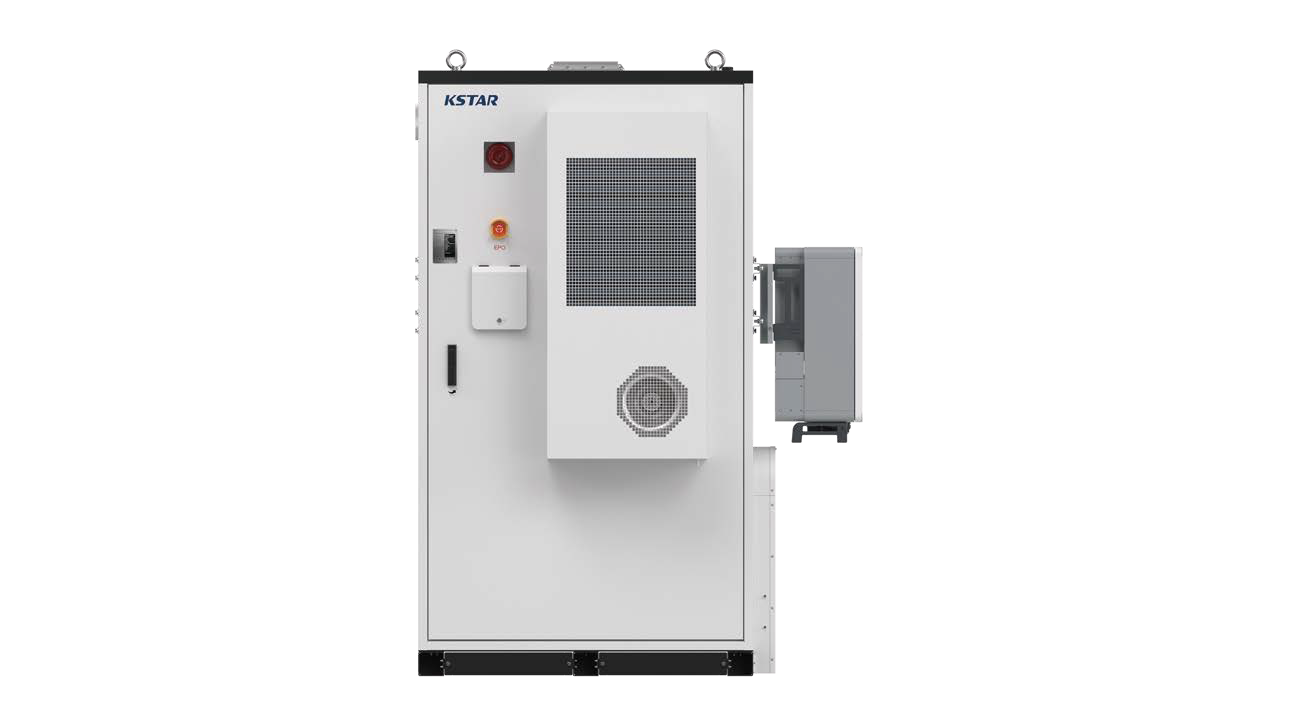

| KAC50DP-BC197DE / KAC50DP-BC197DE2 |
Verkabelung
Die a-TroniX Controller und die KSTAR-Wechselrichter kommunizieren über Ethernet oder RS485.
Ethernet
Für eine korrekte Ethernet-Verkabelung: Folgen Sie den Richtlinien für Ethernet-Verkabelung.
RS485
Konfiguration
Warnung
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the a-TroniX Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The a-TroniX Controller will scan on those first.
