GerätePV hybrid and battery invertersGrowatt
logo

Unterstützte Geräte

Device TypeManualModbus TCP (Ethernet)RS485Curtailment
MIN 2500-6000TL-XManual❌✅✅
MIN 2500-6000TL-XHManual
MIN 7000-10000TL-XManual
MIN 7000-10000TL-X2Manual

Verkabelung

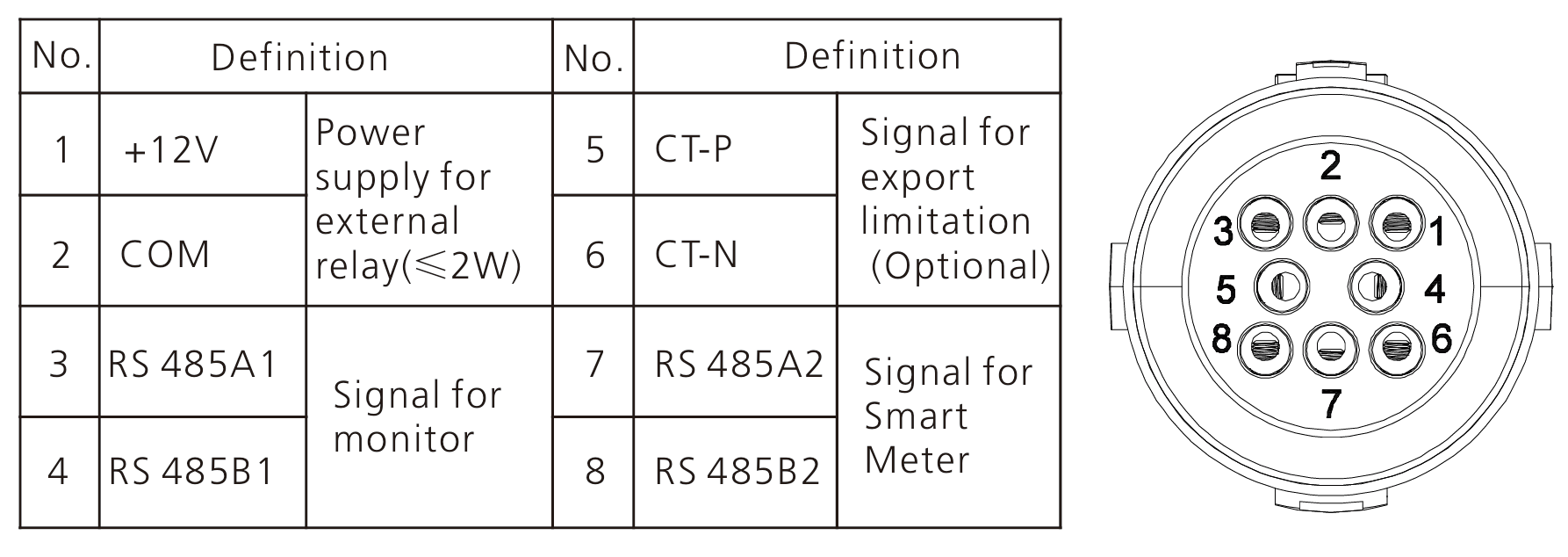

RS485 - MIN 2500-6000TL

RS485 Wiring
  • For correct RS485 wiring: Follow the guidelines for RS485 wiring.
  • If the wiring shown in the table below is incorrect, please let us know.
  • There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
DeviceSmartgridOne Controller model OM1SmartgridOne Controller model IG8RS485-USB converterRS485-Ethernet converter
RS485 A1RS485 ARS485_POSRS485 ATX+
RS485 B1RS485 BRS485_NEGRS485 BTX-
N/ARS GNDGNDNot availableG

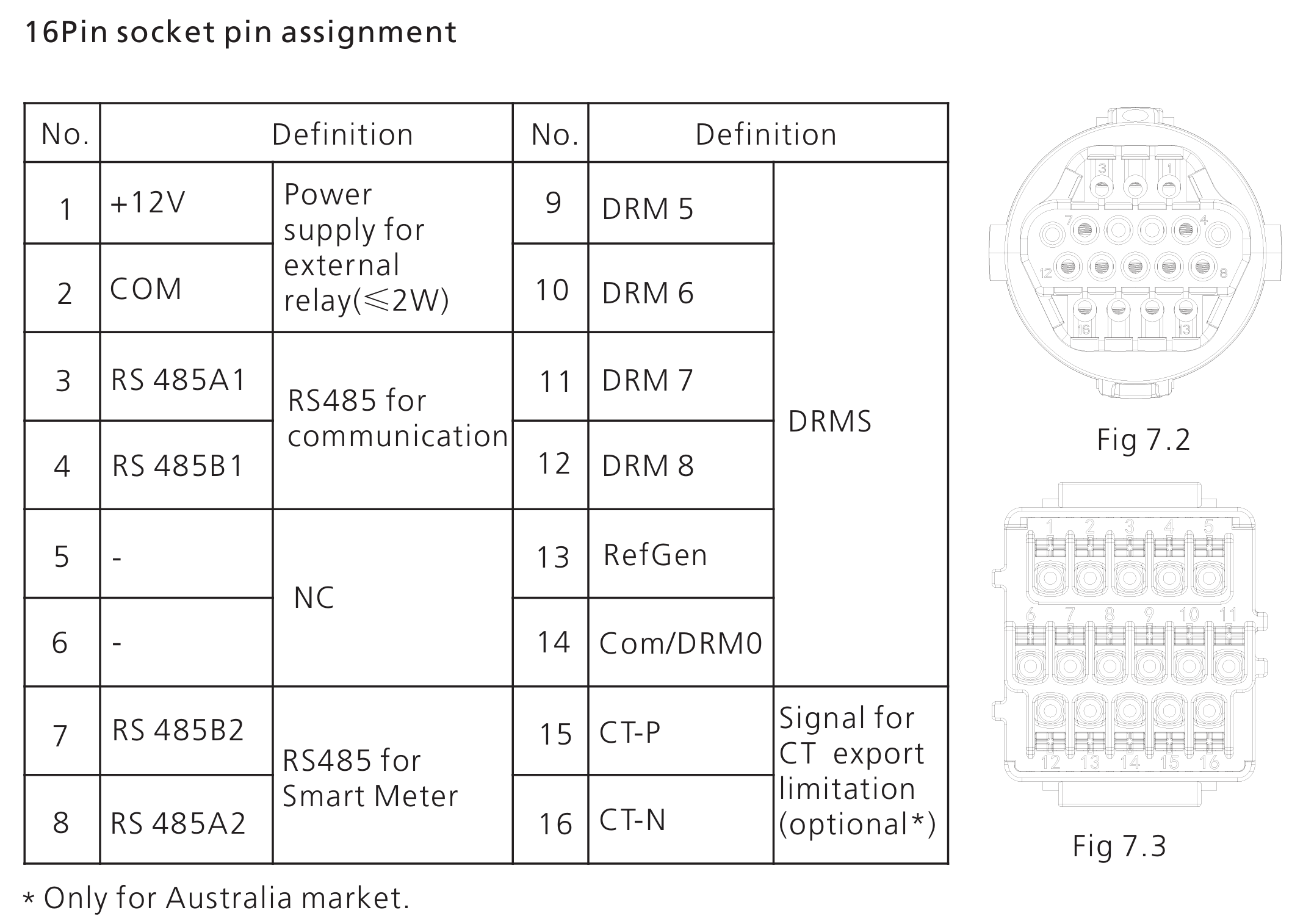

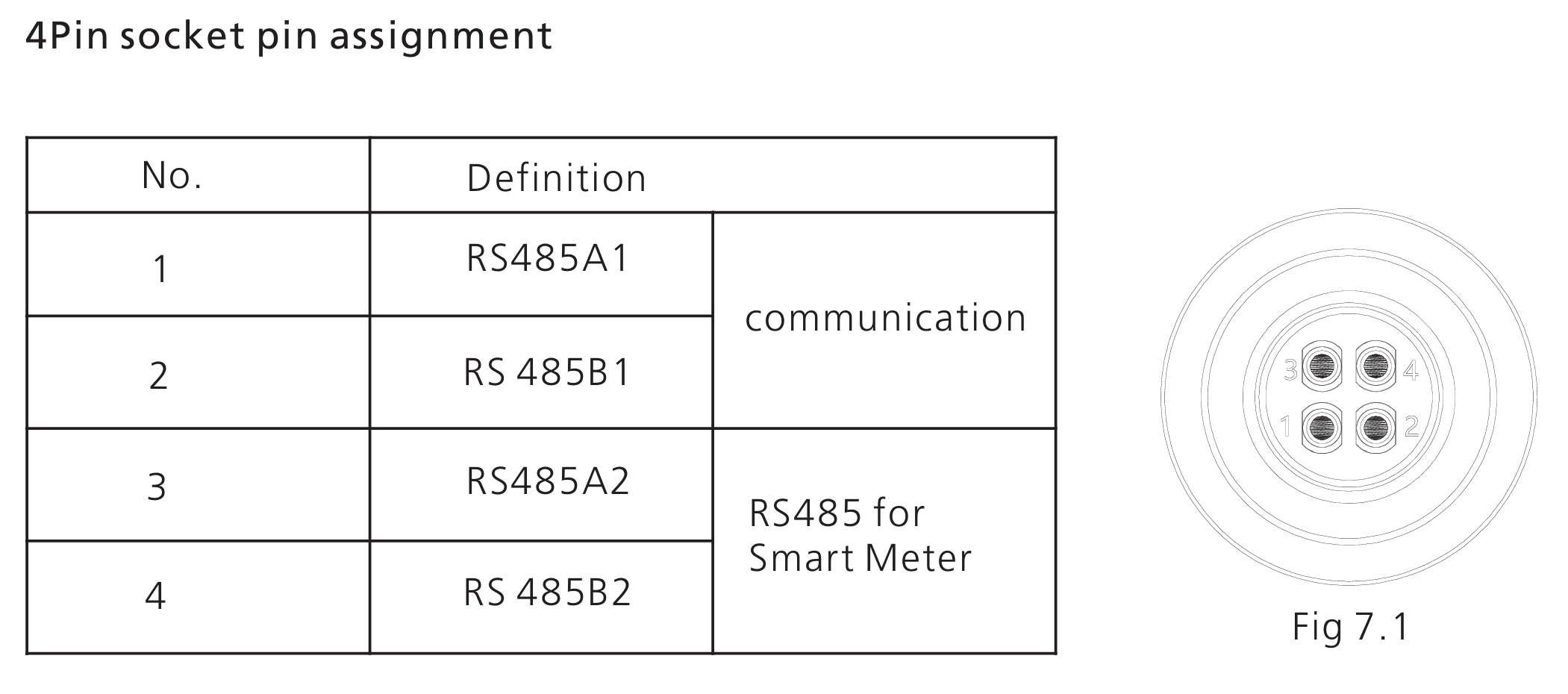

RS485 - MIN 7000-10000TL

RS485 Wiring
  • For correct RS485 wiring: Follow the guidelines for RS485 wiring.
  • If the wiring shown in the table below is incorrect, please let us know.
  • There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
DeviceSmartgridOne Controller model OM1SmartgridOne Controller model IG8RS485-USB converterRS485-Ethernet converter
RS485 A1RS485 ARS485_POSRS485 ATX+
RS485 B1RS485 BRS485_NEGRS485 BTX-
N/ARS GNDGNDNot availableG
NOTE: RS485 Device Addresses
  • You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
  • Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
  • For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.

Growatt MID-Serie

Previous Page

Growatt MOD-Serie

Next Page

On this page

Unterstützte GeräteVerkabelungRS485 - MIN 2500-6000TLRS485 - MIN 7000-10000TL
