Schneider-Electric PM 8000 Energiemessgerät
Unterstützte Geräte
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Schneider-Electric PM 8000 | ✅ | ✅ |
Verkabelung
Ethernet
Für die korrekte Ethernet-Verkabelung: Folgen Sie den Richtlinien für Ethernet-Verkabelung.
RS485
Info

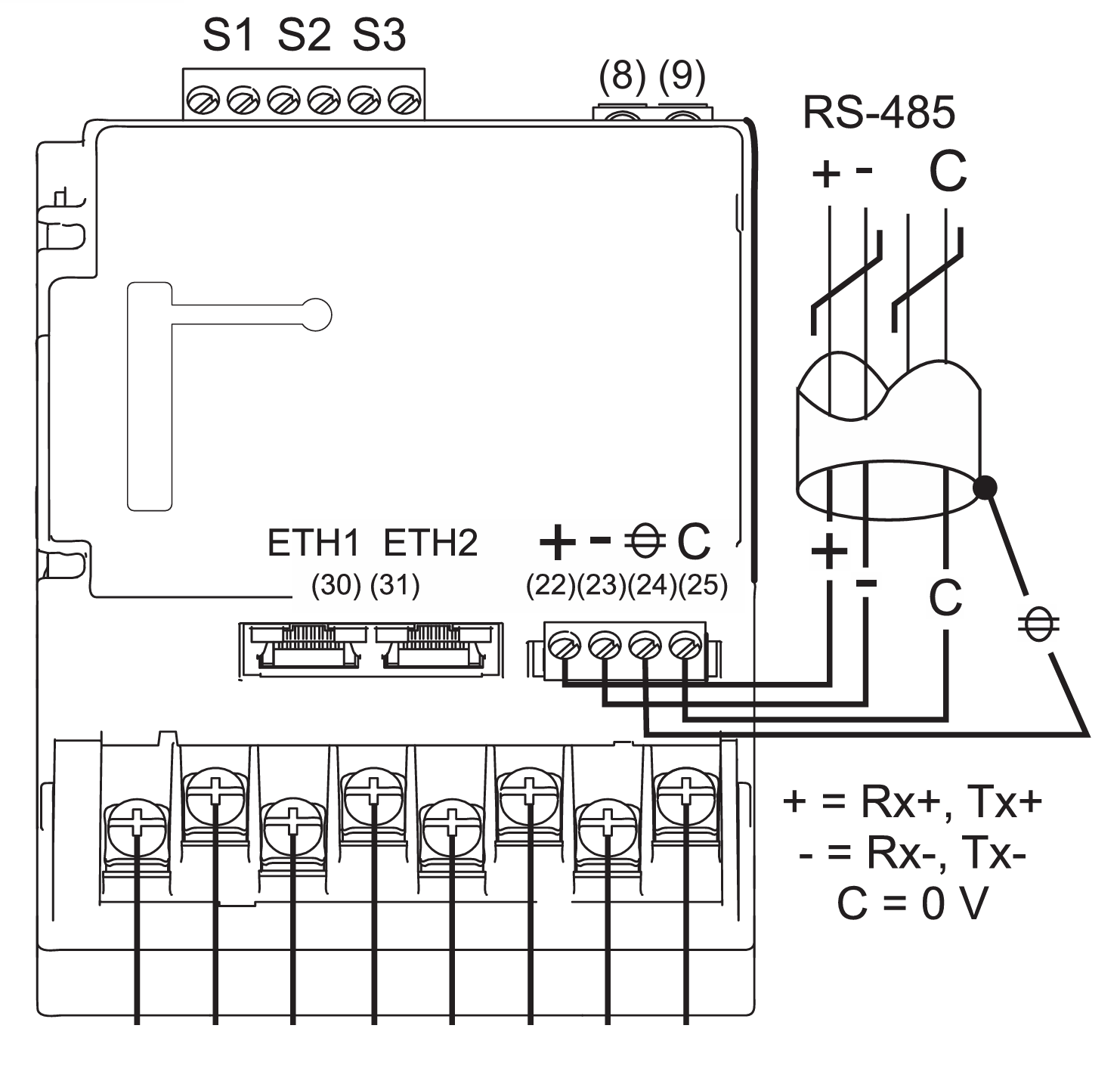

RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | a-TroniX Controller model OM1 | a-TroniX Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| Terminal 22 / + | RS485 A | RS485_POS | RS485 A | TX+ |
| Terminal 23 / - | RS485 B | RS485_NEG | RS485 B | TX- |
| Terminal 25 / C | RS GND | GND | Not available | G |
Konfiguration
Ethernet
Siehe das Gerätehandbuch.
RS485
Warnung
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the a-TroniX Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The a-TroniX Controller will scan on those first.
Überprüfen Sie das Gerätehandbuch, um zu erfahren, wie man die Modbus-Adresse ändert.
