Janitza UMG 96 PQ L Energiemessgerät
Unterstützte Geräte
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Janitza UMG 96 PQ L | ❌ | ✅ |

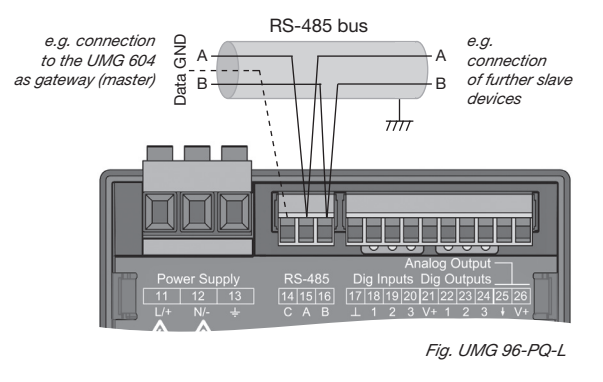

Verkabelung
RS485
Info
RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | a-TroniX Controller model OM1 | a-TroniX Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| RS485 A / Terminal 15 | RS485 A | RS485_POS | RS485 A | TX+ |
| RS485 B / Terminal 16 | RS485 B | RS485_NEG | RS485 B | TX- |
| RS485 C / Terminal 14 | RS GND | GND | Not available | G |
